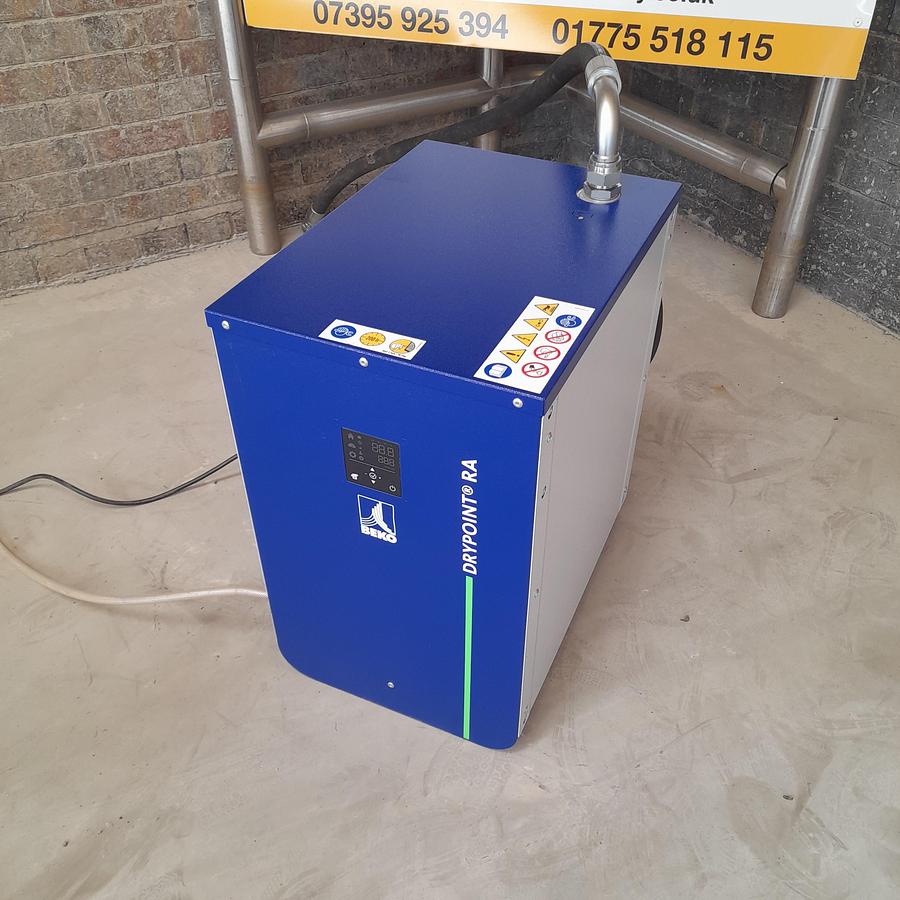

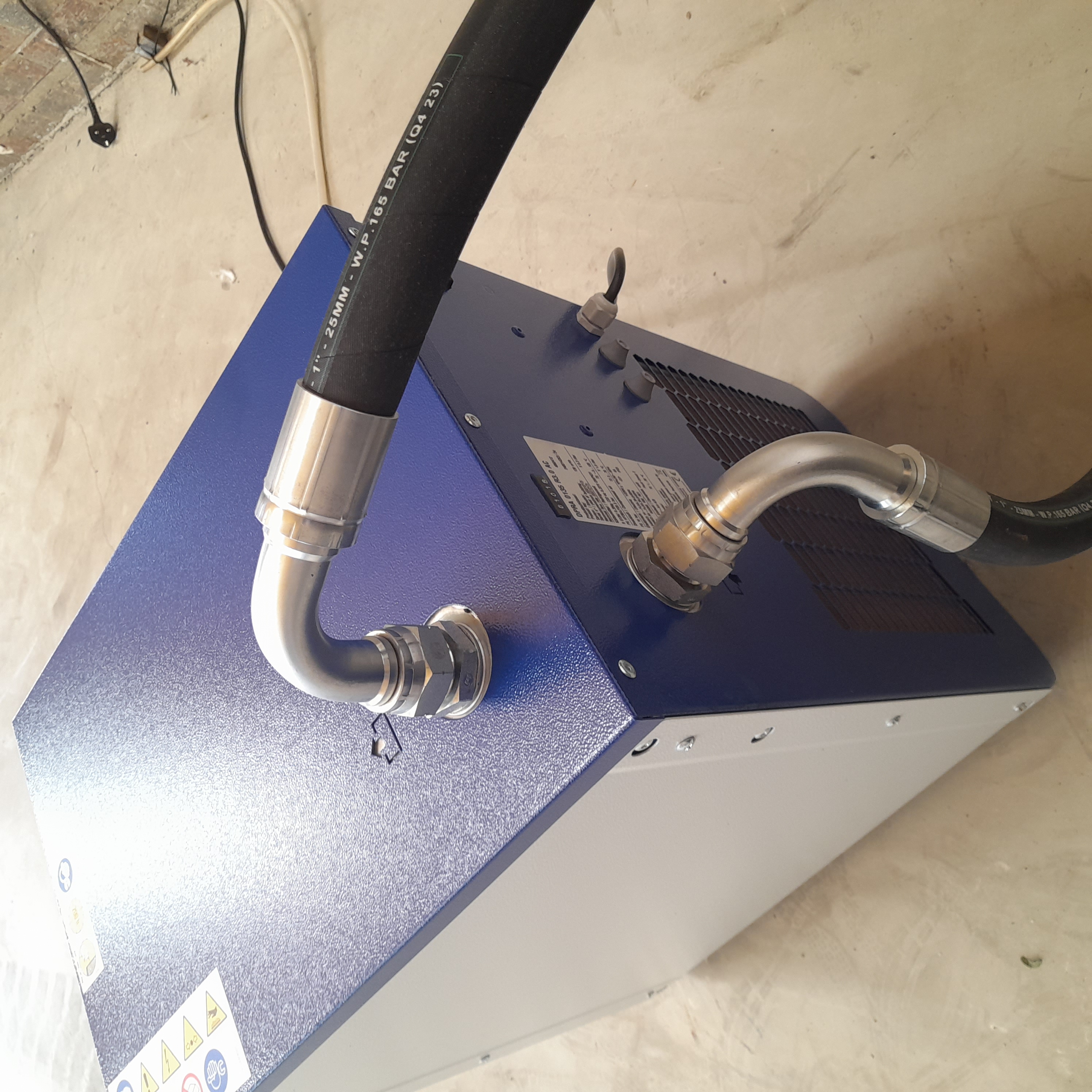

Beko Refrigeration Air Dryer

The BEKO DPRA 0135 R3.0 is a model of refrigeration air dryer from BEKO Technologies, part of their DRYPOINT® RA series. These dryers are used to remove moisture from compressed air systems, ensuring dry, clean air for industrial applications.

Key Features of the DPRA 135/AC Model

• Type: Refrigerated compressed air dryer
• Cooling method: Air-cooled
• Refrigerant: R134a
• Volume flow: Approx. 138 m³/h at a pressure dew point of +3 °C
• Power consumption: Around 0.46 kW
• Pressure loss: ~0.17 bar
• Air connection: G1 BSP-F (British Standard Pipe Female)
• Dimensions: ~740 mm (H) × 345 mm (W) × 420 mm (D)
• Weight: ~34 kg

Applications

• Ideal for use in industrial compressed air systems where moisture control is critical
• Common in manufacturing, automotive, and food processing environments

Environmental Considerations

• Uses ozone-friendly refrigerants
• Designed for energy efficiency and low maintenance

This model is part of a broader range that spans capacities from 20 to 13,200 m³/h, so it’s a mid-range unit suitable for moderate air flow requirements.
